Description

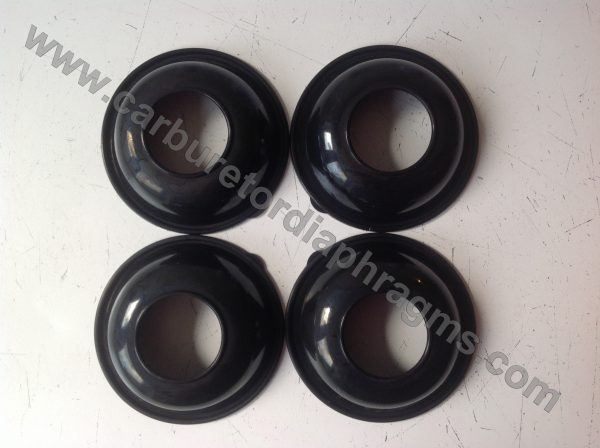

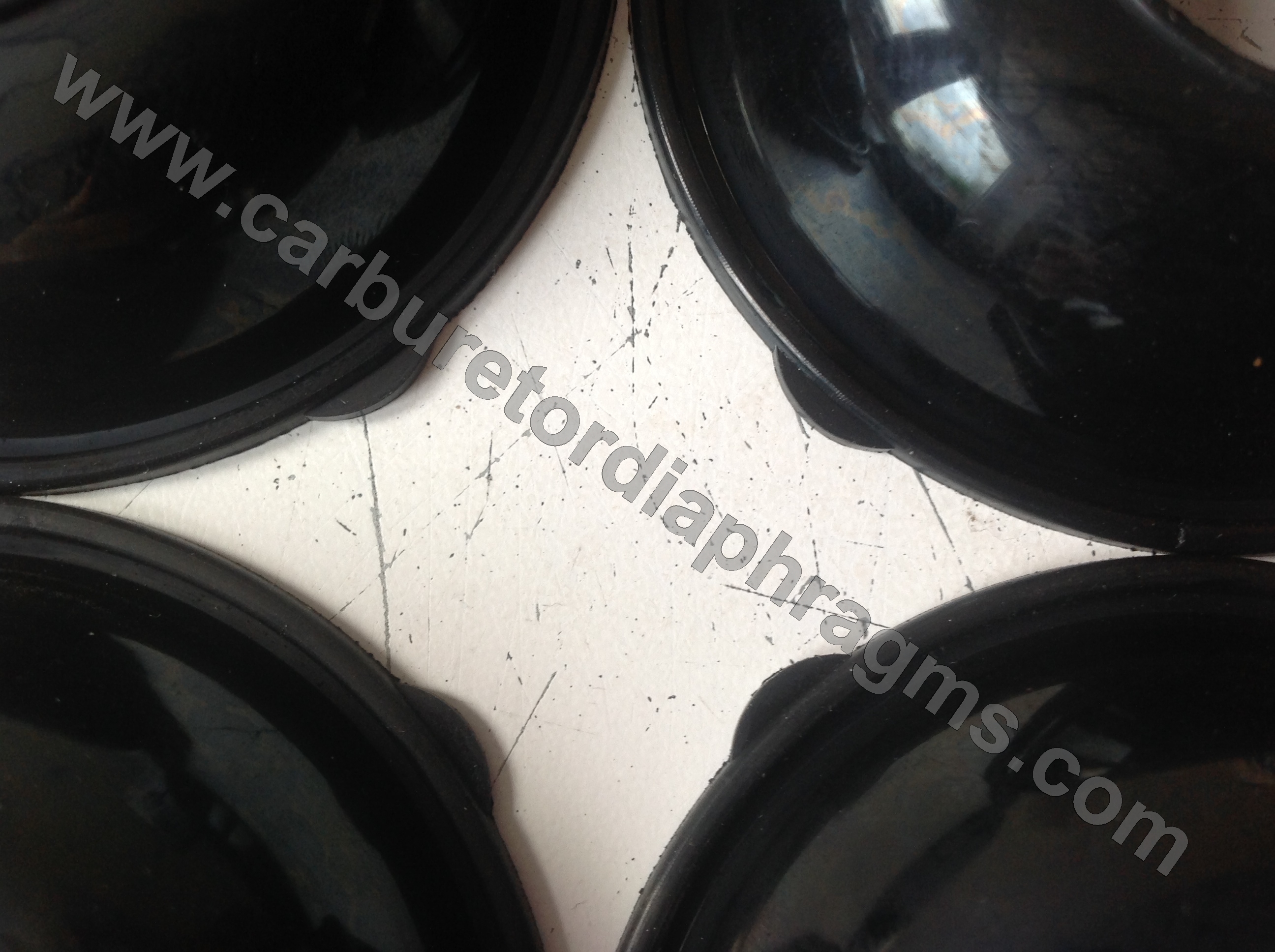

Set of 4 BRAND NEW Carburetor Diaphragms (only the rubber parts). It does not include anything else than that. They should fit Yamaha XVZ13 XVZ1300 made between 1986 and 1993 unless the carbs are different than the stock ones. The diaphragm itself does not have separate part number, but the part number of the corresponding Yamaha Diaphragm Assembly is 1FK-14940-00-00 or 1FK-14940-09-00. So according to these numbers the diaphragms above should fit the following models:

1986 XVZ13DS
1986 XVZ13DSC
1987 XVZ13DT
1987 XVZ13DTC
1987 XVZ13TC
1987 XVZ13T_TC
1988 VENTURE ROYAL – XVZ13DU CALIFORNIA MODEL
1988 VENTURE ROYAL – XVZ13DU NON CALIFORNIA MODEL
1988 VENTURE ROYAL – XVZ13DUC CALIFORNIA MODEL
1988 VENTURE ROYAL – XVZ13DUC NON CALIFORNIA MODEL
1988 XVZ13U NON CALIFORNIA MODEL
1988 XVZ13U MODEL ONLY
1988 XVZ13UC CALIFORNIA MODEL ONLY
1988 XVZ13UC NON CALIFORNIA MODEL
1989 VENTURE ROYALE – XVZ13DW CALIFORNIA MODEL ONLY
1989 VENTURE ROYALE – XVZ13DW NON CALIFORNIA MODEL
1989 VENTURE ROYALE – XVZ13DWC CALIFORNIA MODEL ONLY
1989 VENTURE ROYALE – XVZ13DWC NON CALIFORNIA MODEL
1989 XVZ12DWC CALIFORNIA MODEL ONLY
1989 XVZ12DWC NON CALIFORNIA MODEL
1990 XVZ13DA CALIFORNIA MODEL ONLY
1990 XVZ13DA NON CALIFORNIA MODEL
1990 XVZ13DAC CALIFORNIA MODEL ONLY
1990 XVZ13DAC NON CALIFORNIA MODEL
1991 XVZ13DB CALIFORNIA MODEL ONLY
1991 XVZ13DB NON CALIFORNIA MODELM
1991 XVZ13DBC CALIFORNIA MODEL ONLY
1991 XVZ13DBC NON CALIFORNIA MODEL
1992 XVZ13DD CALIFORNIA MODEL ONLY
1992 XVZ13DD NONCALIFORNIA MODEL
1992 XVZ13DDC CALIFORNIA MODEL ONLY
1992 XVZ13DDC NONCALIFORNIA MODEL
1993 XVZ13DE CALIFORNIA MODEL ONLY
1993 XVZ13DE NON CALIFORNIA MODEL
1993 XVZ13DEC CALIFORNIA MODEL ONLY
1993 XVZ13DEC NON CALIFORNIA MODEL
